SWIR Hyperspectral Camera
Black
IndustrySWIR 1.7
Industrial hyperspectral camera for industrial in-line applications and high conveyor belt speeds
SWIR Hyperspectral Camera
NEXT Generation SWIR Camera
HAIP Solutions BlackIndustry SWIR 1.7 Sensor is a smart line scanning (push-broom) short wave infrared hyperspectral imaging camera that allows the acquisition of real-time spectral data with very high spatial resolution. It is available in two configurations, a base version with 640 px spatial resolution and a high resolution version with 1280 px, named BlackIndustry SWIR 1.7 Max.
Outstanding Sensitivity
The outstanding sensitivity in the SWIR range from 900 nm to 1730 nm is perfect for the use in industrial in-line applications. With a frame rate of 450 Hz at full frame and up to 1300 Hz at ROI, the sensor is suitable for high conveyor belt speeds, ideal for sorting applications.
Easy To Use
Combining superior optical design with advanced holographic transmission grating technology, high-end electronics and a sensitive, next generation InGaAs detector, the BlackIndustry SWIR 1.7 camera is an ideal tool for demanding environments.
Individual pre-processing
Data pre-processing on camera is possible, as the camera has an integrated GPU (Nvidia Jetson). All BlackIndustry series cameras are controllable via HAIP BlackStudio software, GenICam or a dedicated C++/Python API. Code samples available upon request.
Start with HSI Today!
BlackIndustry SWIR 1.7
Specifications
SMART HYPERSPECTRAL LINE-SCANNER
Spatial resolution of 640 pixels, internal GPU for pre-processing
SWIR (900-1730 nm)
420 spectral bands, great SNR, especially 1600-1700 nm region
HIGH FRAMERATE
450 Hz at full frame and up to 1300 Hz at ROI
INDUSTRIAL CONNECTORS
GigE interface/GenICam compatible output mode
BlackIndustry SWIR 1.7
Photo Gallery
Sony
Sensor
Next generation Sony’s SenSWIR sensor technology – implemented in HAIP Solutions‘ BlackIndustry SWIR 1.7 / Max.
Sony’s SenSWIR digital sensors set new standards with a smaller pixel size, improved image uniformity and increased spectral sensitivity in the SWIR spectrum. Paired with the implementation of the Cu-Cu connection, this technology reduces the thickness of the top indium-phosphorus (InP) layer, allowing more light to reach the underlying InGaAs layer. In combination with the high signal-to-noise ratio of the BlackIndustry SWIR 1.7 cameras and the integrated black pixels, the sensitivity in the range from 1600 nm to 1730 nm is outstanding. SenSWIR sensors are used in sorting applications, industrial inspection and environmental monitoring, among others, especially in difficult conditions where conventional sensors fail. They are particularly useful for areas requiring versatile spectral analysis and precise object detection.
/ Halcon
Our software integration with MVTec HALCON – For all BlackIndustry camera models.
Halcon enhances the capabilities of hyperspectral imaging systems by providing powerful tools for processing, analyzing, and interpreting hyperspectral data, enabling users to extract valuable information and insights from complex multidimensional datasets. By implementing the GenICam standard, data captured by HAIP products can be seamlessly received and utilised by MVTec’s software products.
SWIR Hyperspectral Camera
Sample Data
BlackIndustry SWIR 1.7 is based on a new generation InGaAs sensor and specifically designed for industrial in-line applications. Unsure if spectral imaging solves your application? Get in touch with us and send your sample to HAIP Solutions for a measurement in our lab.

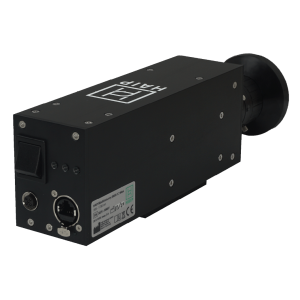

BlackIndustry SWIR 1.7 - Back view
BlackIndustry SWIR 1.7 - Spectral response
Live data Capture and Analysis
HAIP BlackStudio
We are very happy to announce that our BlackIndustry series is ready for the integration cameras now are also delivered with a corresponding software. BlackStudio software is designed for live data capture and analysis of ENVI format images. The two screenshots below show a classification of rice and plastic particles (foreign objects), which is a common task in the optical sorting – food industry.
BlackStudio software - Analysis screen with captured image and ROIs to set classes for classification
BlackStudio software - Analysis screen with classification of rice (green) and plastic (red) after training the classifier
