NIR Hyperspectral Camera
BlackIndustry NIR
Industrial hyperspectral camera for industrial in-line applications and high conveyor belt speeds
NIR Hyperspectral Camera
Real Time Spectral Data
HAIP Solutions BlackIndustry NIR Sensor is a smart line scanning (push-broom) near-infrared hyperspectral imaging camera that allows the acquisition of real-time spectral data with very high spatial resolution. If you need external lighting, BlackIndustry is optimized for combined use with separate broadband LED lighting bar BlackBright.
Outstanding Sensitivity
The outstanding sensitivity in the NIR range from 700 nm to 1050 nm is perfect for the use in industrial in-line applications. With a frame rate of 540 Hz at full frame and up to 1000 Hz at ROI, the sensor is suitable for high conveyor belt speeds, ideal for sorting applications.
Easy To Use
Combining superior optical design with advanced holographic transmission grating technology, highend electronics and a sensitive CMOS detector, BlackIndustry camera is an ideal tool for demanding environments. A special rugged housing is also available.
Individual pre-processing
Data pre-processing on camera is possible, as the camera has an integrated GPU (Nvidia Jetson). All BlackIndustry series cameras are controllable via HAIP BlackStudio software, GenICam or a dedicated C++/Python API. Code samples available upon request.
Start with HSI Today!
BlackIndustry NIR
Specifications
NIR (700 - 1050 nm)
89 spectral bands, great signal-to-noise ratio in NIR region
Mounting plate
BlackIndustry NIR comes with a mounting plate with both metric and imperial threads
Smart hyperspectral line-scanner
Spatial resolution of up to 1920 pixels, internal GPU for pre-processing
High Framerate
540 Hz at full frame and up to 1000 Hz at ROI
Live data Capture and Analysis
HAIP BlackStudio
BlackStudio is the powerful software behind the BlackIndustry camera series, included free of charge with every BlackIndustry camera purchase. It is designed for seamless integration and maximum flexibility with our hyperspectral cameras. Wether in the food industry, recycling industry or any other optical sorting application – BlackStudio delivers precise control, real-time data acquisition and advanced analysis tools tailored to your needs.
- Real-time data capture with four different livestream windows in the Capture tab
- Direct data analysis in the Analysis tab
- Easy data visualization with numerous customization options
- Create data snippets and save them in a separate database
- Train an individual classifier based on the recorded data
- Perform live classification, e.g. with the new On-Camera Classifier tool
Capture screen / Camera control
Spectral analysis / Classification
HAIP BlackStudio Hands-on Tutorial
/ Halcon
Our software integration with MVTec HALCON – For all BlackIndustry camera models.
Halcon enhances the capabilities of hyperspectral imaging systems by providing powerful tools for processing, analyzing, and interpreting hyperspectral data, enabling users to extract valuable information and insights from complex multidimensional datasets. By implementing the GenICam standard, data captured by HAIP products can be seamlessly received and utilised by MVTec’s software products.
NIR Hyperspectral Camera
Sample Data
BlackIndustry NIR is based on a push-broom linescanner and specifically designed for industrial in-line applications. Unsure if spectral imaging solves your application? Get in touch with us and send your sample to HAIP Solutions for a measurement in our lab.
Broadband LED lighting bar - BlackBright Optimized for combined use with BlackIndustry NIR

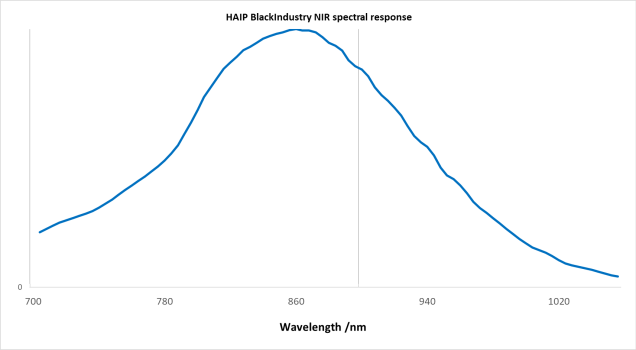

BlackIndustry NIR - Spectral response
